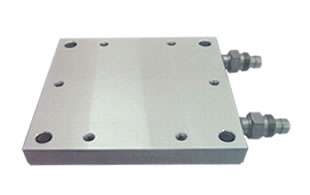

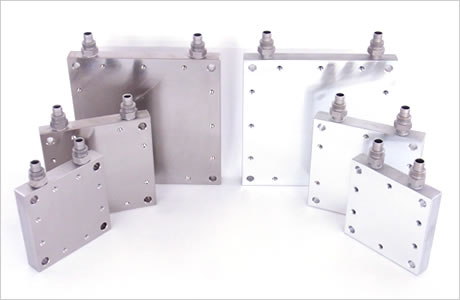

水冷散熱板 也稱為液冷板，水冷頭。
流路設計和表面精度對水冷散熱板的性能有很大的影響。即便使用相同的材質與幫浦，也會因為此兩者的不同而影響散熱效果。另外熱源與表面的接觸率對性能也有很大的影響。我們將會依照用途為您設計‧製作形狀、大小與材質皆適宜的水冷散熱板。
水冷散熱板多用於IGBT(絕緣柵雙極電晶體)的散熱或高功率UV-LED燈板的散熱。本公司水冷散熱板最大尺寸可達2000mm×1000mm。有任何需要或疑問，歡迎來信詢問。
Kawaso Texcel(川電技優) 水冷散熱板的三大特色
特殊流道設計，實現全面均匀冷卻

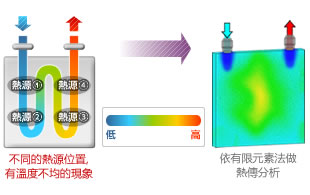

獨特的流道形狀設計，大幅減少表面溫度差，實現均匀冷卻。表面高精度，冷卻更迅速！
爲了使熱源和水冷板無縫貼合，本公司產品的平面度和平行度均控制在0.02mm以下。全面硬釺焊，杜絕漏水現象！

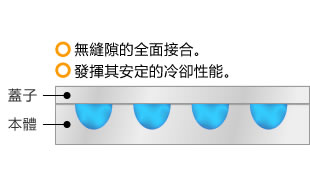

通過全面硬釺焊，使主體和蓋板之間實現無縫隙接合，以防止漏水現象發生。
銅製標準品規格
| 型號 | 尺寸 (mm) |
圖面 |
|---|---|---|
| HS-C60 | 60×60×19 | |
| HS-C100 | 100×100×19 | |
| HS-C80-170 | 80×170×19 | |
| HS-C120 | 120×120×19 | |
| HS-C120-210 | 120×210×19 | |
| HS-C150-170 | 150×170×19 | |
| HS-C170 | 170×170×19 | |
| HS-C170P | 170×170×12.5 | |
| HS-SC80-170 | 80×170×19 | |
| HS-SC150-170 | 150×170×19 | |
| HS-SC150-230 | 150×230×19 | |
| HS-SC140-300 | 140×300×19 | |
| HS-UC230 | 230×230×22 | |
| HS-UC300 | 300×300×22 |
適用管徑均爲12×10mm (外徑×内徑)
※1.金屬裸管的管徑爲8×6mm (外徑×内徑)
：半通用型水冷散熱板
：通用型水冷散熱板
- 60×60
- 100×100
- 80×170
- 120×120
- 120×210
- 150×170
- 170×170
- 150×230
- 140×300
- 230×230
- 300×300
鋁製標準品規格
| 型號 | 尺寸 (mm) |
圖面 |
|---|---|---|
| HS-A100 | 100×100×19 | |
| HS-A80-170 | 80×170×19 | |
| HS-A120 | 120×120×19 | |
| HS-A150-170 | 150×170×19 | |
| HS-A170 | 170×170×19 | |
| HS-SA80-170 | 80×170×19 | |
| HS-SA150-170 | 150×170×19 | |
| HS-UA230 | 230×230×22 | |
| HS-UA300 | 300×300×22 |
適用管徑均爲12×10mm（外徑×内徑）
：半通用型水冷散熱板
：通用型水冷散熱板
- 100×100
- 80×170
- 120×120
- 150×170
- 170×170
- 230×230
- 300×300
不鏽鋼製標準品規格
| 型號 | 尺寸 (mm) |
圖面 |
|---|---|---|
| HS-S170P | 170×170×14 |
金屬裸管的管徑爲8×6mm (外徑×内徑)

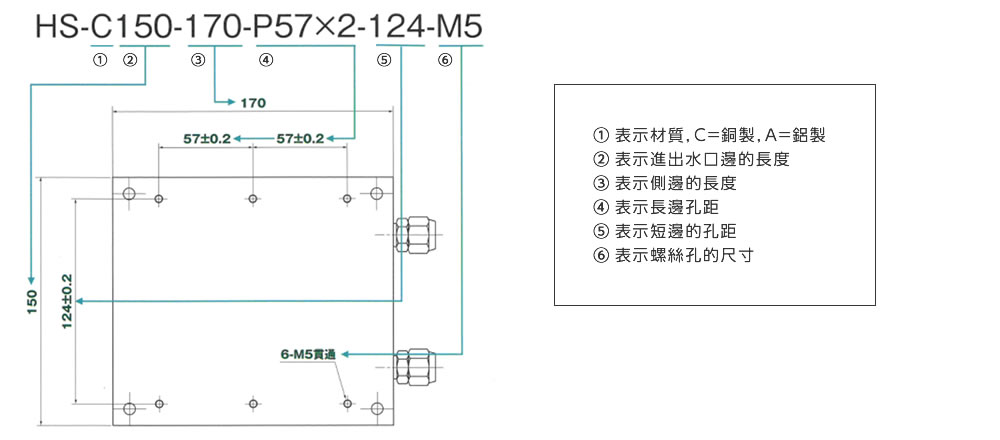

關於產品編號
銅/鋁製IGBT用標準品規格
適用管徑均爲12×10mm（外徑×内徑）
※若您有需要，請按[Ctrl]+[F]，在搜索框中搜索IGBT的型號。
| 尺寸 (mm) |
螺絲孔 距離 (mm) |
螺絲孔 尺寸 |
材質 | 重量 (kg) |
型號 | 圖面 | IGBT適用型號 | ||
|---|---|---|---|---|---|---|---|---|---|
| 英飛凌 (Infineon) |
三菱電機 | 富士電機 | |||||||
| 80×170×19 | 48×93 | M5 | 銅 | 2.3 | HS-C80-170-P48-93-M5 | FD450R12KE4P FD300R17KE4P FF300R12KE4_E FF600R12KE4_E FF450R12KE4_E FF400R17KE4_E FF300R07KE4 FF400R07KE4 FF300R12KE4 FF200R12KE4 FF300R12KE4_B2 FF450R12KE4P FF600R12KE4P FF300R12KE4P FF600R12KE4 FF200R12KE4P FF150R17KE4 FF450R12KE4 FF300R17KE4 FF400R17KE4 FF500R17KE4 FF300R17KE4P FF200R17KE4 FZ900R12KE4 FZ400R12KE4 FZ600R12KE4 FZ400R17KE4 FZ600R17KE4 FZ900R12KP4 FZ600R12KP4 FZ400R12KP4 FF600R12KT4 FF400R12KT4P FF200R12KT4 FF300R12KT4P FF450R12KT4 FF300R12KT4 FF450R12KT4P FD300R06KE3 FD300R12KE3 FD200R12KE3P DF200R12KE3 DF300R12KE3 DF400R12KE3 FD400R12KE3 FF300R06KE3_B2 FF200R06KE3 FF300R06KE3 FF400R06KE3 FF200R12KE3 FF300R12KE3 FF400R12KE3 FF400R12KE3_B2 FF150R12KE3G FF300R17KE3 FF200R17KE3 FZ600R12KE3 FZ400R12KE3 FZ400R12KE3_B1 FD400R12KE3_B5 FZ300R12KE3G FZ800R12KE3 FZ600R17KE3_S4 FZ400R17KE3 FZ600R17KE3 FF400R12KT3P_E FF300R12KT3P_E FF200R12KT3_E FF300R12KT3_E FF400R12KT3_E FF200R12KT3 FF400R12KT3 FF300R12KT3 FF150R12KT3G FD300R12KS4 FF150R12KS4_B2 FF300R12KS4P FF150R12KS4 FF100R12KS4 FF200R12KS4 FF200R12KS4P FF300R12KS4 FZ600R12KS4 FZ400R12KS4 FD300R12KS4_B5 FZ400R12KS4P DZ800S17K3 BYM 300 A 120 DN2 BYM 300 B 170 DN2 BYM 600 A 170 DN2 |
CMH200DU-24NFH CMH300DU-24NFH CMH400HC6-24NFM CM300DY-34T CM400DY-34T CM450C1Y-24T CM450DY-24T CM600C1Y-24T CM600DY-13T CM600DY-24T CM300DY-24S CM200DY-24NF CM400DY-12NF CM400DY-24TH CM200DU-24NFH CM300DU-12NFH CM300DU-24NFH CM400DU-12NFH CM150DY-34A CM200DY-34A CM300DY-24A CM400HA-24A CM500HA-34A CM600HA-24A CM150DU-24F CM200DU-24F CM300DU-12F CM400DU-12F CM400DU-5F CM400HU-24F CM600HU-12F CM100DU-34KA CM150DU-34KA CM150DU-24H CM150E3U-24H CM200DU-24H CM300DU-12H CM300E3U-12H CM400DU-12H CM400HU-24H CM600HU-12H RM600DY-34S RM800DY-34S RM200DA-20F RM200DA-24F RM400HA-20S RM400HA-24S |
2MBI400XDE065-50 2MBI600XDE065-50 2MBI400XDE120-50 2MBI600XDE120-50 2MBI300XHA120-50 2MBI450XHA120-50 2MBI600XHA120-50 2MBI150XHA170-50 2MBI200XHA170-50 2MBI300XHA170-50 2MBI400XHA170-50 1MBI400VH-060L-50 1MBI200HH-120L-50 1MBI200U4H-120L-50 1MBI300HH-120L-50 1MBI300U2H-060L-50 1MBI300V-170-50 1MBI400HH-120L-50 1MBI400V-120-50 1MBI400V-170-50 1MBI400VF-120-50 1MBI400VH-060-L-50 1MBI600V-120-50 1MBI600V-170-50 1MBI600VF-120-50 1MBI900V-120-50 2MBI100HJ-120-50 2MBI150HH-120-50 2MBI150HJ-120-50 2MBI150VH-170-50 2MBI150VH-170-80 2MBI200HH-120-50 2MBI200HJ-120-50 2MBI200VH-120-50 2MBI200VH-120-80 2MBI200VH-170-50 2MBI200VH-170-80 2MBI300HJ-120-50 2MBI300VD-120-50 2MBI300VH-120-50 2MBI300VH-120-80 2MBI300VH-170-50 2MBI300VH-170-80 2MBI400VD-060-50 2MBI400VD-120-50 2MBI450VH-120-50 2MBI450VH-120-80 2MBI450VH-120F-50 2MBI450VH-120F-80 2MBI600VD-060-50 |
|
| 鋁 | 0.7 | HS-A80-170-P48-93-M5 | |||||||
| M6 | 銅 | 2.3 | HS-C80-170-P48-93-M6 | ||||||
| 鋁 | 0.7 | HS-A80-170-P48-93-M6 | |||||||
| 80×170×19 | 48×112 | M5 | 銅 | 2.3 | HS-C80-170-P48-112-M5 | SCR Diode Modules 60mm |
|||
| 鋁 | 0.7 | HS-A80-170-P48-112-M5 | |||||||
| M6 | 銅 | 2.3 | HS-C80-170-P48-112-M6 | ||||||
| 鋁 | 0.7 | HS-A80-170-P48-112-M6 | |||||||
| 80×170×19 | 50×110 | M5 | 銅 | 2.3 | HS-C80-170-P50-110-M5 | EconoPACK3 EconoPIM3 EconoDUAL3 FF450R12ME7_B11 FF600R12ME7_B11 FF300R12ME7_B11 F3L400R07ME4_B22 F3L400R07ME4_B23 F3L300R12ME4_B23 F3L300R12ME4_B22 FF450R12ME4E_B11 FF600R12ME4E_B11 FF450R07ME4 FF600R07ME4_B11 FF300R07ME4_B11 FF450R07ME4_B11 FF600R07ME4 FF300R07ME4 FF450R12ME4P_B11 FF225R12ME4_B11 FF600R12ME4A_B11 FF450R12ME4_B11 FF225R12ME4P FF600R12ME4_B72 FF300R12ME4P_B11 FF600R12ME4_B73 FF225R12ME4P_B11 FF600R17ME4_B11 FF450R17ME4P_B11 FF225R17ME4P FF300R17ME4P_B11 FF300R17ME4P FF450R17ME4_B11 FF225R17ME4P_B11 FF600R17ME4P_B11 F4-100R17N3E4 F4-100R17ME4_B11 F4-150R17ME4_B11 F4-250R17MP4_B11 FF225R12ME4 FF450R12ME4 FF300R12ME4 FF450R12ME4P FF600R17ME4 FF300R17ME4 FF450R17ME4P FF600R12ME4P FF600R12ME4 FF600R12ME4P_B11 FF600R12ME4C FF600R12ME4_B11 IFF600B12ME4S8P_B11 IFF300B12ME4P_B11 IFF600B12ME4_B11 IFF600B12ME4P_B11 IFF450B12ME4P_B11 IFF450B12ME4S8P_B11 F4-200R17N3E4 FP150R07N3E4 FP100R07N3E4 FP150R07N3E4_B11 FP100R07N3E4_B11 IFS200B12N3E4_B37 IFS200B12N3E4P_B37 FS200R07N3E4R_B11 FS200R07N3E4R FS150R07N3E4 IFS75B12N3E4_B31 IFS150B12N3E4_B31 IFS100B12N3E4_B31 IFS200B12N3E4_B31 FS150R17N3E4_B11 FS150R17N3E4 IFS150B17N3E4P_B11 FS100R17N3E4 FS100R17N3E4?B11 F3L300R12MT4_B22 F3L300R12PT4_B26 F3L300R12MT4P_B22 F3L300R12MT4_B23 F3L300R12MT4P_B23 FP75R12KT4P FP100R12KT4_B11 FP150R12KT4P_B11 FP75R12KT4 FP50R12KT4G FP75R12KT4_B15 FP100R12KT4 FP150R12KT4_B11 FP150R12KT4 FS100R12KT4G_B11 FS100R12KT4G FS150R12KT4_B9 FS200R12KT4RP_B11 FS200R12KT4R FS200R12KT4R_B11 FS150R12KT4_B11 F12-25R12KT4G FP200R12N3T7 FP150R12N3T7 FD600R06ME3_S2 FF600R06ME3 FF450R06ME3 FF300R12ME3 FF150R12ME3G FF450R12ME3 FF150R17ME3G FF225R17ME3 FF450R17ME3 FP100R06KE3 FP75R06KE3 FP75R12KE3 FP50R12KE3 FP40R12KE3G FS150R06KE3 FS200R06KE3 FS100R06KE3 FS75R12KE3G FS100R12KE3 FS150R12KE3 FS100R17KE3 FS75R17KE3 FP40R12KT3G FP75R12KT3 FP50R12KT3 FS75R12KT3G FS100R12KT3 FS150R12KT3 FF150R12MS4G FF300R12MS4 FF225R12MS4 F4-150R12KS4 F4-100R12KS4 FP50R12KS4C FS100R12KS4 FS75R12KS4 |
CM75MX-12A CM100MX-12A CMH300DX-24NFH FMF300BXZ-24B FMF400BX-24A FMF400BX-24B FMF400BXZ-24B FMF600DX2-24A FMF600DXZ-24B FMF800DX-24A FMF800DX-24B FMF800DX2-24A FMF800DXZ-24B CM100MXUC-24T1 CM100MXUCP-24T1 CM100MXUD-13T1 CM100MXUDP-13T1 CM150MXUD-13T1 CM150MXUD-24T1 CM150MXUDP-13T1 CM150MXUDP-24T1 CM225DX-24T1 CM225DXP-24T1 CM300DX-24T1 CM300DXP-24T1 CM450DX-24T1 CM450DXP-24T1 CM600DX-24T1 CM600DXP-24T1 CM75MXUC-24T1 CM75MXUCP-24T1 CM800DX-24T1 CM800DXP-24T1 CM100MXUC-24T CM100TX-13T CM100MXUCP-24T CM150TX-13T CM100MXUD-13T CM100MXUDP-13T CM100TX-24T CM100RX-24T CM150TX-24T CM100RXP-24T CM100TX-34T CM150TX-34T CM150RX-12A CM200RX-12A CM75RX-24S CM300DX-12A CM400DX-12A CM150DX-24S CM200DX-24S CM35MXA-24S CM50MXA-24S CM75MXA-24S CM100MXA-24S CM75TX-24S CM75RX-34SA CM150DX-34SA CM200DX-34SA CM300DX-34SA CM75MXA-34SA CM100RX-24S1 CM150RX-24S1 CM225DX-24S1 CM300DX-24S1 CM450DX-24S1 CM600DX-24S1 CM300DX-13T CM450DX-13T CM600DX-13T CM225DX-24T CM300DX-24T CM450DX-24T CM600DX-24T CM200TX-13T CM200TX-24T CM150RX-13T CM200RX-13T CM150RX-24T CM100TXP-13T CM150TXP-13T CM200TXP-24T CM100TXP-34T CM150TXP-34T CM150RXP-24T CM300DXP-13T CM450DXP-13T CM600DXP-13T CM225DXP-24T CM300DXP-24T CM450DXP-24T CM600DXP-24T CM75MXUC-24T/24T1 CM100MXUC-24T/24T1 CM100MXUD-13T/T1 CM150MXUD-13T/T1 CM150MXUD-24T/T1 CM150MXUDP-13T CM150MXUDP-24T CM225DX-34T CM225DXP-34T CM300DX-34T CM300DXP-34T CM450DX-34T CM450DXP-34T CM600DX-34T CM600DXP-34T CM75MXUCP-24T CM100TX-24S1 CM150TX-24S1 CM100RX-24S CM100TX-24S CM150RX-24S CM150TX-24S CM300DX-24S CM450DX-24S CM100RX-24A CM150DX-24A CM200DX-24A CM300DX-24A CM35MX-24A CM400HX-24A CM450DX-24A CM50MX-24A CM600HX-24A CM75MX-24A CM75RX-24A |
7MBR100XRA065-50 7MBR150XRA065-50 7MBR150XRE065-50 7MBR75XRA120-50 7MBR75XRE120-50 6MBI100U4B-170-50 7MBR100XRA120-50 6MBI100U4B-170-80 7MBR100XRE120-50 7MBR150XRE120-50 6MBI100XBA120-50 6MBI150XBA120-50 6MBI200XBA120-50 6MBI200XBE120-50 6MBI100XXA120-50 6MBI150XXA120-50 6MBI150U4B-170-50 6MBI200XXA120-50 6MBI150U4B-170-80 6MBI200XXE120-50 6MBI150VB-060-50 6MBI100VB-120-50 6MBI150VB-120-50 6MBI180VB-120-50 6MBI180VB-120-55 6MBI150VX-060-50 6MBI150VX-060-80 6MBI100VX-120-50 6MBI100VX-120-80 6MBI150VX-120-50 6MBI150VX-120-80 6MBI180VX-120-50 6MBI180VX-120-80 6MBI180VX-120-55 6MBI180VX-120-85 6MBI100VX-170-50 6MBI100VX-170-80 12MBI50VN-120-50 7MBR100VB060-50 12MBI75VN-120-50 7MBR100VN120-50 12MBI100VN-120-50 7MBR100VR060-50 12MBI50VX-120-50 7MBR100VR120-50 12MBI75VX-120-50 7MBR100VX120-50 12MBI100VX-120-50 7MBR100VX120-80 7MBR100VZ060-50 7MBR100VZ060-80 7MBR100VZ120-50 7MBR100VZ120-80 7MBR100XNA065-50 7MBR100XNA120-50 7MBR100XXA065-50 7MBR100XXA120-50 7MBR100XZA065-50 7MBR100XZA120-50 7MBR150VN120-50 7MBR150VR060-50 7MBR150VR120-50 7MBR150VX120-50 7MBR150VX120-80 7MBR150VZ060-50 7MBR150VZ060-80 7MBR150VZ120-50 7MBR150VZ120-80 7MBR150XNA065-50 7MBR150XNE120-50 7MBR150XXA065-50 7MBR150XXE120-50 7MBR150XZA065-50 7MBR150XZE120-50 7MBR35VB120-50 7MBR50VB120-50 7MBR50VN120-50 7MBR50VR120-50 7MBR50VX120-50 7MBR50VX120-80 7MBR50VZ120-50 7MBR50VZ120-80 7MBR75VB060-50 7MBR75VB120-50 7MBR75VN120-50 7MBR75VR120-50 7MBR75VX120-50 7MBR75VX120-80 7MBR75VZ120-50 7MBR75VZ120-80 7MBR75XNA065-50 7MBR75XNA120-50 7MBR75XXA065-50 7MBR75XXA120-50 7MBR75XZA120-50 |
|
| 鋁 | 0.7 | HS-A80-170-P50-110-M5 | |||||||
| M6 | 銅 | 2.3 | HS-C80-170-P50-110-M6 | ||||||
| 鋁 | 0.7 | HS-A80-170-P50-110-M6 | |||||||
| 80×170×19 | 57×124 | M5 | 銅 | 2.3 | HS-C80-170-P57-124-M5 | IHV FZ250R65KE3 |
CM200HG-130H CM400HG-66H |
||
| 鋁 | 0.7 | HS-A80-170-P57-124-M5 | |||||||
| M6 | 銅 | 2.3 | HS-C80-170-P57-124-M6 | ||||||
| 鋁 | 0.7 | HS-A80-170-P57-124-M6 | |||||||
| 80×170×19 | 62×93 | M5 | 銅 | 2.3 | HS-C80-170-P62-93-M5 | CM600DY-12NF CM400DY-24NF CMH400DU-24NFH CM400DY-24A CMH600DU-24NFH CM600DY-24A CM400C1Y-24S CM300DY-34A CM450DY-24S CM300DY-24NF CM600DY-24S CM600DU-12NFH CM400DU-24TH CM600DU-24TH CM400DU-24NFH CM600DU-24NFH CM300DU-24F CM350DU-5F CM600DU-5F CM600HA-5F CM600HN-5F CM600HU-24F CM200DU-34KA CM300DU-24H CM600HU-24H RM400DY-24S |
2MBI300VE-120-50 2MBI300VE-120-80 2MBI600XEE065-50 2MBI300VE-170-50 2MBI450XEE120-50 2MBI300VE-170-80 2MBI600XEE120-50 2MBI400VE-170-50 2MBI300XEE170-50? 2MBI400VE-170-80 2MBI400XEE170-50 2MBI450VE-120-50 4MBI220VF-170R2-50 2MBI450VE-120-80 4MBI300VG-120R1-50 2MBI600VE-060-50 4MBI340VF-120R-50 2MBI600VE-060-80 4MBI400VG-060R-50 2MBI600VE-120-50 4MBI400VF-120R-50 2MBI600VE-120-80 4MBI300VG-120R-50 4MBI450VF-120RD-50 |
||
| 鋁 | 0.7 | HS-A80-170-P62-93-M5 | |||||||
| M6 | 銅 | 2.3 | HS-C80-170-P62-93-M6 | ||||||
| 鋁 | 0.7 | HS-A80-170-P62-93-M6 | |||||||
| 150×170×19 | 110×110 | M5 | 銅 | 4.3 | HS-C150-170-P110-110-M5 | CM300RXL-24S1 CM1000DXL-24S CM150RXL-34SA CM200RXL-24S CM450DXL-34SA CM600DXL-24S CM600DXL-34SA CM800DY-24S CM600DU-24NF CM400DY-34A CM400DU-24F CM600DU-24F CM300DU-34KA CM400DU-34KA |
|||
| 鋁 | 1.3 | HS-A150-170-P110-110-M5 | |||||||
| M6 | 銅 | 4.3 | HS-C150-170-P110-110-M6 | ||||||
| 鋁 | 1.3 | HS-A150-170-P110-110-M6 | |||||||
| 150×170×19 | 78×110 | M5 | 銅 | 4.3 | HS-C150-170-P78-110-M5 | CM200TL/RL-12NF PM100CL1A120 CM150TL/RL-24NF PM100RL1A120 CM200TL/RL-24NF PM150RL1A120 PM200CL1A060 PM200RL1A060 PM300CL1A060 PM300RL1A060 PM100CLA120 PM100RLA120 PM150CLA120 PM150RLA120 PM200CLA060 PM200RLA060 PM300CLA060 PM300RLA060 CM150RL-24NF CM150TL-24NF CM200RL-12NF CM200RL-24NF CM200TL-12NF CM200TL-24NF |
|||
| 鋁 | 1.3 | HS-A150-170-P78-110-M5 | |||||||
| M6 | 銅 | 4.3 | HS-C150-170-P78-110-M6 | ||||||
| 鋁 | 1.3 | HS-A150-170-P78-110-M6 | |||||||
| 150×170×19 | 86×127 | M5 | 銅 | 4.3 | HS-C150-170-P86-127-M5 | XHP 3 | CM1000DA-34X CM1200DW-24T CM1200DA-34X CM1200DW-34T CM450DA-66X CM800DW-24T CM600DA-66X CM800DW-34T CM800DW-34TA CM450DE-66X CM225DE-130XA CM600DE-66X CM300DE-130XA |
2MBI1000XUF170-50 2MBI450XUF330-50 2MBI1000XVF170-50 |
|
| 鋁 | 1.3 | HS-A150-170-P86-127-M5 | |||||||
| M6 | 銅 | 4.3 | HS-C150-170-P86-127-M6 | ||||||
| 鋁 | 1.3 | HS-A150-170-P86-127-M6 | |||||||
| 150×170×19 | (57+57)×124 | M5 | 銅 | 4.3 | HS-C150-170-P57×2-124-M5 | IHM IHV IHMB FZ1200R12HE4 FZ1200R12HE4P FZ1200R17HE4P FZ1200R17HE4 FZ1600R33HE4 FZ825R33HE4D FZ1400R33HE4 FD800R17HP4-K_B2 FD1200R17HP4-K_B2 FZ1600R12HP4 FZ2400R12HP4 FZ1200R12HP4 FZ1600R17HP4_B2 FZ1200R17HP4 FZ1200R17HP4_B2 FZ1600R17HP4_B21 FZ2400R17HP4_B2 FZ1600R17HP4 FD1200R17KE3-K FF1200R17KE3 FF800R17KE3 FF300R17ME3 FF800R12KE3 FF1200R12KE3 FZ1000R33HE3 FZ1600R17KE3 FZ1000R33HL3 DD1200S12H4 DD800S17H4_B2 DD1200S17H4_B2 DD500S33HE3 DD1000S33HE3 |
CM1200HC-66X CM2400HC-34X CM1200DC-34S CMH1200DC-34S CM1200DB-34N CM1200DC-34N CM1200E4C-34N CM1200HCB-34N CM1800HC-34N CM2400HC-34N CM1200DB/DC-34N CM800DZB-34N CM1000HC-66R CM800HC-90R CM1200HA-34H CM1200HC-34H CM1600HC-34X CM1600HC-34H CM400DY-50H CM400DY-66H CM1200E4C-66X CM400HB-90H CM600DY-34H CM600E2Y-34H CM600HB-90H CM400HG-130H CM600HG-90H CM800HG-90R CM800DZ-34H CM900HG-90X CM800HA-34H CM1000HG-90X CM800HA-50H CM600HG-130X CM800HA-66H CM800HB-50H CM800HB-66H CM800HC-66H RM1000DC-66F RM1200DB-34S RM1200DG-66X RM1200DB-66S RM1200DG-66S RM1200DG-90F RM1500DC-66F RM200DG-130S RM450DG-90X RM250DG-130F RM300DG-90S RM400DG-66S RM300DG-130X RM400DG-90F RM1000DG-130XA RM400DY-66S RM600DC-66X RM600DG-130S RM600DY-66S RM800DG-90F RM900DB-90S RM900DB/HC-90S RM900HC-90S |
1MBI1000UG-330 1MBI2400VD-120P 1MBI1000UG-330B 1MBI1200VC-120P 1MBI1200VC-170E 1MBI1200VR-170E 1MBI1600VC-120P 1MBI1600VC-170E 1MBI1600VR-170E 1MBI2400VC-120P 1MBI2400VC-170E 1MBI2400VR-170E 1MBI800UG-330 2MBI1200VG-120P 2MBI1200VG-170E 2MBI1200VT-170E 2MBI600VG-120P 2MBI600VG-170E 2MBI600VT-170E 2MBI800VG-120P 2MBI800VG-170E 2MBI800VT-170E |
|
| 鋁 | 1.3 | HS-A150-170-P57×2-124-M5 | |||||||
| M6 | 銅 | 4.3 | HS-C150-170-P57×2-124-M6 | ||||||
| 鋁 | 1.3 | HS-A150-170-P57×2-124-M6 | |||||||
| 150×230×19 | (57+57+57) ×124 |
M5 | 銅 | 5.9 | HS-C150-230-P57×3-124-M5 | IHM IHV IHMB FZ2400R12HE4_B9 FZ1800R12HE4_B9 FZ3600R17HE4P FZ2400R17HE4P_B9 FZ1800R17HE4_B9 FZ2400R17HE4_B9 FZ3600R17HE4 FZ2400R33HE4 FZ2000R33HE4 FZ1800R45HL4_S7 FZ1800R45HL4 FD1600/1200R17HP4-K_B2 FZ3600R12HP4 FZ2400R12HP4_B9 FZ1800R12HP4_B9 FZ3600R17HP4 FZ2400R17HP4_B28 FZ1800R17HP4_B9 FZ2400R17HP4_B29 FZ1800R17HP4_B29 FZ2400R17HP4_B9 FZ3600R17HP4_B2 FD1000R33HE3-K FZ1500R33HE3 FZ1200R33HE3 FD1000R33HL3-K FZ1500R33HL3 FZ1200R45HL3 |
CM1200HCB-66X CM1800HC-66X CM1800HG-66X CM1800HCB-34N CM1200HB/HC-50H CM2400HCB-34N CM1200HB/HC-66H CM1200HC-90R CM800E4C/E6C-66H CM1200HG-90R CM900HB/HC-90H CM1500HC-66R CM1500HG-66R CM750HG-130R CM400E2G/E4G-130H CM1200HA-50H CM1200HA-66H CM1000E4C-66R CM1200HB-50H CM1200HB-66H CM1200HC-50H CM1200HC-90RA CM1200HC-66H CM1200HG-66H CM1800HC-34H CM2400HC-34H CM2400HCB CM400E2G-130H CM1200HCB CM600HG-130H CM1350HC-90X CM800E2C-66H CM1500HC-90XA CM800E6C-66H CM3600HC-34X CM900HB-90H CM900HC-90H CM900HG-90H CM1350HG-90X PM1200HCE330-1 CM1500HG-90X CM600HGB-130X CM900HG-130X CM1000HG-130XA CM900HGB-90X |
1MBI3600VD-120P 1MBI2400VD-170E 1MBI3600VD-170E 1MBI2400VD-120P 1MBI2400VS-170E 1MBI3600VS-170E 1MBI1200UE-330 1MBI1500UE-330 1MBI1500UE-330B |
|
| M6 | 銅 | 5.9 | HS-C150-230-P57×3-124-M6 | ||||||
| 140×300×19 | (50+50+50 +50+50)×110 *可安裝多個安裝孔距離為 50×110(mm)的IGBT |
M5 | 銅 | 7.2 | HS-C140-300-P50×5-110-M5 | EconoPACK3 EconoPIM3 FF450R12ME7_B11 FF600R12ME7_B11 FF300R12ME7_B11 F3L400R07ME4_B22 F3L400R07ME4_B23 F3L300R12ME4_B23 F3L300R12ME4_B22 FF450R12ME4E_B11 FF600R12ME4E_B11 FF450R07ME4 FF600R07ME4_B11 FF300R07ME4_B11 FF450R07ME4_B11 FF600R07ME4 FF300R07ME4 FF450R12ME4P_B11 FF225R12ME4_B11 FF600R12ME4A_B11 FF450R12ME4_B11 FF225R12ME4P FF600R12ME4_B72 FF300R12ME4P_B11 FF600R12ME4_B73 FF225R12ME4P_B11 FF600R17ME4_B11 FF450R17ME4P_B11 FF225R17ME4P FF300R17ME4P_B11 FF300R17ME4P FF450R17ME4_B11 FF225R17ME4P_B11 FF600R17ME4P_B11 F4-100R17N3E4 F4-100R17ME4_B11 F4-150R17ME4_B11 F4-250R17MP4_B11 FF225R12ME4 FF450R12ME4 FF300R12ME4 FF450R12ME4P FF600R17ME4 FF300R17ME4 FF450R17ME4P FF600R12ME4P FF600R12ME4 FF600R12ME4P_B11 FF600R12ME4C FF600R12ME4_B11 IFF600B12ME4S8P_B11 IFF300B12ME4P_B11 IFF600B12ME4_B11 IFF600B12ME4P_B11 IFF450B12ME4P_B11 IFF450B12ME4S8P_B11 F4-200R17N3E4 FP150R07N3E4 FP100R07N3E4 FP150R07N3E4_B11 FP100R07N3E4_B11 IFS200B12N3E4_B37 IFS200B12N3E4P_B37 FS200R07N3E4R_B11 FS200R07N3E4R FS150R07N3E4 IFS75B12N3E4_B31 IFS150B12N3E4_B31 IFS100B12N3E4_B31 IFS200B12N3E4_B31 FS150R17N3E4_B11 FS150R17N3E4 IFS150B17N3E4P_B11 FS100R17N3E4 FS100R17N3E4?B11 F3L300R12MT4_B22 F3L300R12PT4_B26 F3L300R12MT4P_B22 F3L300R12MT4_B23 F3L300R12MT4P_B23 FP75R12KT4P FP100R12KT4_B11 FP150R12KT4P_B11 FP75R12KT4 FP50R12KT4G FP75R12KT4_B15 FP100R12KT4 FP150R12KT4_B11 FP150R12KT4 FS100R12KT4G_B11 FS100R12KT4G FS150R12KT4_B9 FS200R12KT4RP_B11 FS200R12KT4R FS200R12KT4R_B11 FS150R12KT4_B11 F12-25R12KT4G FP200R12N3T7 FP150R12N3T7 FD600R06ME3_S2 FF600R06ME3 FF450R06ME3 FF300R12ME3 FF150R12ME3G FF450R12ME3 FF150R17ME3G FF225R17ME3 FF450R17ME3 FP100R06KE3 FP75R06KE3 FP75R12KE3 FP50R12KE3 FP40R12KE3G FS150R06KE3 FS200R06KE3 FS100R06KE3 FS75R12KE3G FS100R12KE3 FS150R12KE3 FS100R17KE3 FS75R17KE3 FP40R12KT3G FP75R12KT3 FP50R12KT3 FS75R12KT3G FS100R12KT3 FS150R12KT3 FF150R12MS4G FF300R12MS4 FF225R12MS4 F4-150R12KS4 F4-100R12KS4 FP50R12KS4C FS100R12KS4 FS75R12KS4 |
CM75MX-12A CM100MX-12A CMH300DX-24NFH FMF300BXZ-24B FMF400BX-24A FMF400BX-24B FMF400BXZ-24B FMF600DX2-24A FMF600DXZ-24B FMF800DX-24A FMF800DX-24B FMF800DX2-24A FMF800DXZ-24B CM100MXUC-24T1 CM100MXUCP-24T1 CM100MXUD-13T1 CM100MXUDP-13T1 CM150MXUD-13T1 CM150MXUD-24T1 CM150MXUDP-13T1 CM150MXUDP-24T1 CM225DX-24T1 CM225DXP-24T1 CM300DX-24T1 CM300DXP-24T1 CM450DX-24T1 CM450DXP-24T1 CM600DX-24T1 CM600DXP-24T1 CM75MXUC-24T1 CM75MXUCP-24T1 CM800DX-24T1 CM800DXP-24T1 CM100MXUC-24T CM100TX-13T CM100MXUCP-24T CM150TX-13T CM100MXUD-13T CM100MXUDP-13T CM100TX-24T CM100RX-24T CM150TX-24T CM100RXP-24T CM100TX-34T CM150TX-34T CM150RX-13T CM100TXP-13T CM100TXP-24T CM100TXP-34T CM150RX-24T CM150MXUD-13T CM150MXUD-24T CM150TXP-13T CM150MXUDP-13T CM150MXUDP-24T CM150TXP-24T CM150RXP-13T CM150RXP-24T CM150TXP-34T CM200RX-13T CM200RXP-13T CM200TX-13T CM200TX-24T CM200TXP-13T CM200TXP-24T CM75MXUC-24T/24T1 CM225DX-24T CM100MXUC-24T/24T1 CM225DX-34T CM100MXUD-13T/T1 CM225DXP-24T CM150MXUD-13T/T1 CM225DXP-34T CM150MXUD-24T/T1 CM300DX-13T CM300DX-24T CM300DX-34T CM300DXP-13T CM300DXP-24T CM300DXP-34T CM450DX-13T CM450DX-24T CM450DX-34T CM450DXP-13T CM450DXP-24T CM450DXP-34T CM600DX-13T CM600DX-24T CM600DX-34T CM600DXP-13T CM600DXP-24T CM600DXP-34T CM75MXUC-24T CM75MXUCP-24T CM100RX-24S1 CM100TX-24S1 CM150RX-24S1 CM150TX-24S1 CM225DX-24S1 CM300DX-24S1 CM450DX-24S1 CM600DX-24S1 CM100MXA-24S CM100RX-24S CM100TX-24S CM150DX-24S CM150DX-34SA CM150RX-24S CM150TX-24S CM200DX-24S CM200DX-34SA CM300DX-24S CM300DX-34SA CM35MXA-24S CM450DX-24S CM50MXA-24S CM75MXA-24S CM75MXA-34SA CM75RX-24S CM75RX-34SA CM75TX-24S CM100RX-12A CM100RX-24A CM150DX-24A CM150RX-12A CM200DX-24A CM200RX-12A CM300DX-12A CM300DX-24A CM35MX-24A CM400DX-12A CM400HX-24A CM450DX-24A CM50MX-24A CM600HX-24A CM75MX-24A CM75RX-24A |
7MBR100XRA065-50 7MBR150XRA065-50 7MBR150XRE065-50 7MBR75XRA120-50 7MBR75XRE120-50 6MBI100U4B-170-50 7MBR100XRA120-50 6MBI100U4B-170-80 7MBR100XRE120-50 7MBR150XRE120-50 6MBI100XBA120-50 6MBI150XBA120-50 6MBI200XBA120-50 6MBI200XBE120-50 6MBI100XXA120-50 6MBI150XXA120-50 6MBI150U4B-170-50 6MBI200XXA120-50 6MBI150U4B-170-80 6MBI200XXE120-50 6MBI150VB-060-50 6MBI100VB-120-50 6MBI150VB-120-50 6MBI180VB-120-50 6MBI180VB-120-55 6MBI150VX-060-50 6MBI150VX-060-80 6MBI100VX-120-50 6MBI100VX-120-80 6MBI150VX-120-50 6MBI150VX-120-80 6MBI180VX-120-50 6MBI180VX-120-80 6MBI180VX-120-55 6MBI180VX-120-85 6MBI100VX-170-50 6MBI100VX-170-80 12MBI50VN-120-50 7MBR100VB060-50 12MBI75VN-120-50 7MBR100VN120-50 12MBI100VN-120-50 7MBR100VR060-50 12MBI50VX-120-50 7MBR100VR120-50 12MBI75VX-120-50 7MBR100VX120-50 12MBI100VX-120-50 7MBR100VX120-80 7MBR100VZ060-50 7MBR100VZ060-80 7MBR100VZ120-50 7MBR100VZ120-80 7MBR100XNA065-50 7MBR100XNA120-50 7MBR100XXA065-50 7MBR100XXA120-50 7MBR100XZA065-50 7MBR100XZA120-50 7MBR150VN120-50 7MBR150VR060-50 7MBR150VR120-50 7MBR150VX120-50 7MBR150VX120-80 7MBR150VZ060-50 7MBR150VZ060-80 7MBR150VZ120-50 7MBR150VZ120-80 7MBR150XNA065-50 7MBR150XNE120-50 7MBR150XXA065-50 7MBR150XXE120-50 7MBR150XZA065-50 7MBR150XZE120-50 7MBR35VB120-50 7MBR50VB120-50 7MBR50VN120-50 7MBR50VR120-50 7MBR50VX120-50 7MBR50VX120-80 7MBR50VZ120-50 7MBR50VZ120-80 7MBR75VB060-50 7MBR75VB120-50 7MBR75VN120-50 7MBR75VR120-50 7MBR75VX120-50 7MBR75VX120-80 7MBR75VZ120-50 7MBR75VZ120-80 7MBR75XNA065-50 7MBR75XNA120-50 7MBR75XXA065-50 7MBR75XXA120-50 7MBR75XZA120-50 |
|
| M6 | 銅 | 7.2 | HS-C140-300-P50×5-110-M6 | ||||||
客製化水冷散熱板
耐腐蝕不鏽鋼製水冷散熱板
不鏽鋼製的水冷散熱板有良好的耐蝕性，適用在銅或鋁有可能被腐蝕的環境。任何種類的冷媒皆可適用。
我們通過流路設計和表面精度的加工，來提升不鏽鋼水冷散熱板的冷卻性能。曲面水冷散熱板
曲面水冷散熱板適用於圓筒型熱源的散熱。
曲面
最大尺寸700L×150W×20T 最小半徑 200mm 最大內角度 180° 表面塗裝水冷散熱板
一般水冷散熱板的表面為了防止氧化及腐蝕，會進行鍍鎳處理。除此之外，我們也可以依照您的使用環境及用途，爲您推薦最適合的表面處理。
種類 目的 電著塗裝(霧面) 防止反射 電著塗裝 加強散熱效果 表面凹槽加工水冷散熱板
按照熱源的形狀在水冷散熱板的表面進行凹槽加工，可以縮減整體體積，簡單固定熱源。適用於同時裝載多個熱源時。
