Standard product like Custom
Universal liquid cold pate
Smi-Universal liquid cold plate

Universal Liquid Cold Plate

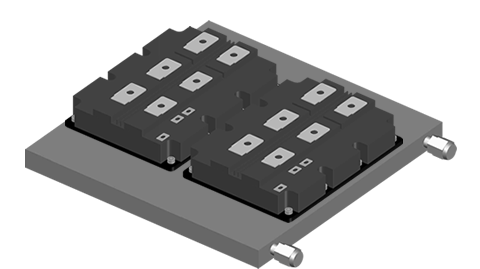

Multiple devices can be mounted anywhere you want.
No need to make a custom product because of utilizing standard product.

To Save Cost and Time

Universal type liquid cold plate is ideal for such needs.

Universal type liquid cold plate

Universal type liquid cold plate

Smi-Universal type liquid cold plate

Smi-Universal type liquid cold plate
Free hand

Despite of a standard product,
multiple heat sources can be freely mounted.
Any size and shape of a heat source is acceptable.*
* It is limited to the size of the standard product.

Quick delivery

After making tap or through holes at your required positions on a standard product which has no mounting holes, we ship it.

Utilizing a standard product, design process of product's body can be skipped and it can realize quick delivery.

Semi-customised
Uniform cooling

Achieving uniform cooling of whole surface by designing optimal the flow path.

Uniform cooling

Line up

Material Product name Size Tap hole size(mm) Through hole size(mm) Drawing
Universal type Copper HS-UC230 230×230×22 Up to M6 Up to φ9 PDF
HS-UC300 300×300×22 Up to M6 Up to φ12 PDF
Aluminum HS-UA230 230×230×22 Up to M6 Up to φ9 PDF
HS-UA300 300×300×22 Up to M6 Up to φ12 PDF
Semi- Universal type Copper HS-SC80-170 80×170×19 Up to M6 Up to φ9 PDF
HS-SC150-170 150×170×19 Up to M10 Up to φ12 PDF
HS-SC150-230 150×230×19 Up to M10 Up to φ12 PDF
HS-SC140-300 140×300×19 Up to M10 Up to φ12 PDF
Aluminum HS-SA80-170 80×170×19 Up to M6 Up to φ9 PDF
HS-SA150-170 150×170×19 Up to M10 Up to φ12 PDF

Cooling performance

Thermal resistance data of Universal liquid cold plate (30 deg C)
Pressure loss data of Universal liquid cold plate (30 deg C)
Thermal resistance data of Semi-Universal liquid cold plate (30 deg C)
Pressure loss data of Semi-Universal liquid cold plate (30 deg C)

Liquid Cold Plate Line up

Please contact us if you have any inquiries about this product.
