Thin Multi-Layer Liquid Cold Plate

Thin Multi-Layer Liquid Cold Plate

The thin-multi-layer liquid cold plate is specially designed for thermal solutions with a limited space.
We create a micro 3D flow path inside the multi-layer liquid cold plate, providing excellent cooling performance with a space-saving design.

Standard Line-up

Size Thickness (mm) Size of fittings Weight (g) Lead Time Drawing
78×88 3.4 Rc1/8 285 1 week PDF
Customizable 3~4 weeks PDF

The Rc1/8 type is designed for common use with a lead time of 1 week.
Customization of fittings is also available, with lead time of 3~4 weeks.

Space-saving Design

e.g.: When using a 15mm thickness heat source

Ordinary Product

Multi-Layer design

Low-pressure drop with high cooling performance

Ordinary design

Multi-Layer design (Standard Product)

Ordinary design vs Multi-Layer design

Pressure loss Reduced by 50%!

* Compared to the ordinary design

Max. Temperature
47.5 °C
Thermal Resistance
0.023 °C/W
Pressure Loss
0.040 MPa

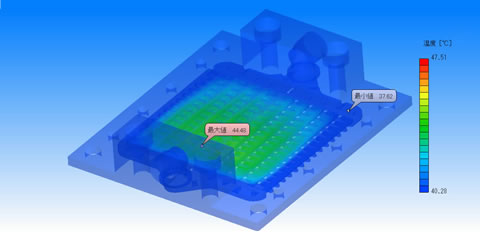

Max. Temperature
44.5 °C
Thermal Resistance
0.019 °C/W
Pressure Loss
0.020 MPa

Test Condition

Material Size Heat Load Coolant Flow Rate
C1020 75×88×3.4t 750W Pure water / 30°C 2L/min

Full Customization

Customized products are available with a more multi-layered structure for better cooling performance.
Try our multi-layer thin heat sinks for superior cooling performance and less pressure loss!

Multi-layer structure reduces pressure loss

Unique microchannel structure improves cooling performance
